Building A Flexo Bridge & Sleeve That Lasts

    • A flexo printing presses’ internal operating environment is very demanding. It involves a lot of forces such as high torque, high temperatures caused by friction and to add to that, the chemicals involves can be corrosive.

    All these variables come into play and can affect final product quality considerably if substandard parts or materials are used. This is especially true for mounting sleeves and that is the reason why we pay close attention to how we manufacture them to ensure that they operate at their optimum capacity at all levelsduring printing.

    STAGE 1: Making the Inner Dyneema Layer

    stage 1 Dyneema Sleeves and Bridges

    The first stage involves constructing the main inner layer of the sleeve or bridge using high-quality materials such as Dyneema. This is one of the crucial structures that will hold up the sleeve and the main area that will have the most contact to where it is mounted and therefore it needs to be accurately built and be able to handle the various pressures that occur during the printing process.

    Building it involves using a mandrel that reflects the needed bridge or sleeve sizes. Once the correct size had been determined, using a Dyneema weave and various agents that ensure its structure is strong while remaining lightweight, the inner core is wounded up and tightened to create the inner layer. It is then hardened and then the next stage can begin.

    INNER LAYER WITH DYNEEMA

    dyneema facts

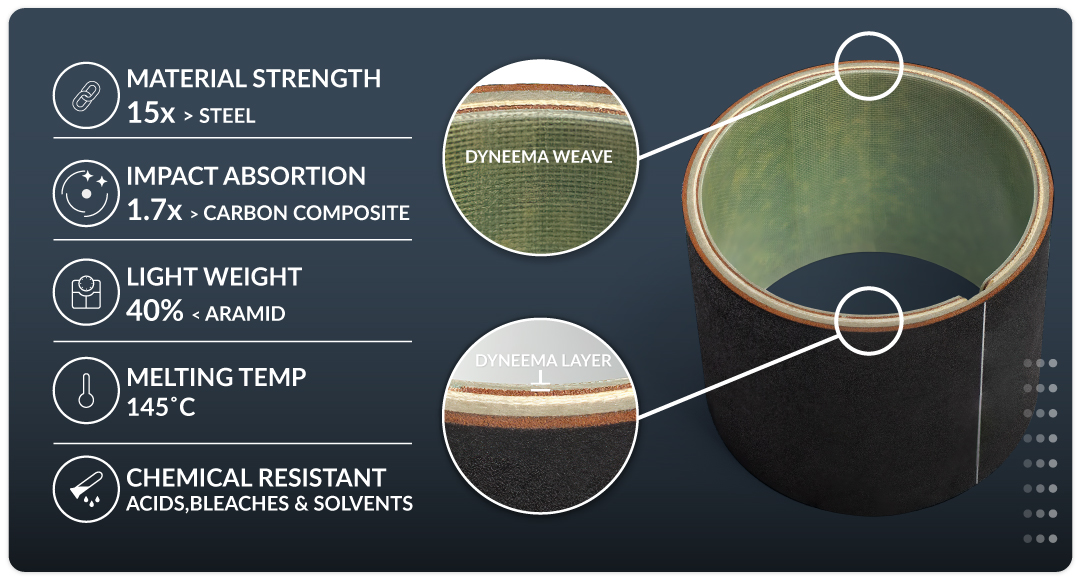

    Dyneema is the worlds strongest fibre and we use it due to its amazing properties. It makes the sleeve more durable, especially the are where it makes contact with the mandrel. This is due to its weight to strength ratio compared to many other materials. It outperforms steel but also materials like Kevlar and Aramid fibres that have amazing properties as well.

    It is also sturdy and reduces slippage while being highly durable meaning that the sleeve can withstand the extreme conditions that it will face during a high-speed printing press job run. Furthermore, it has a high melting point and also chemical resistance, therefore all the solvents and most acids that it can face in a printing press facility will have minimum impact on it.

    STAGE 2/3: Adding the other 4 layer types and Grinding

    Stage 3 and 4 Sleeve Construction

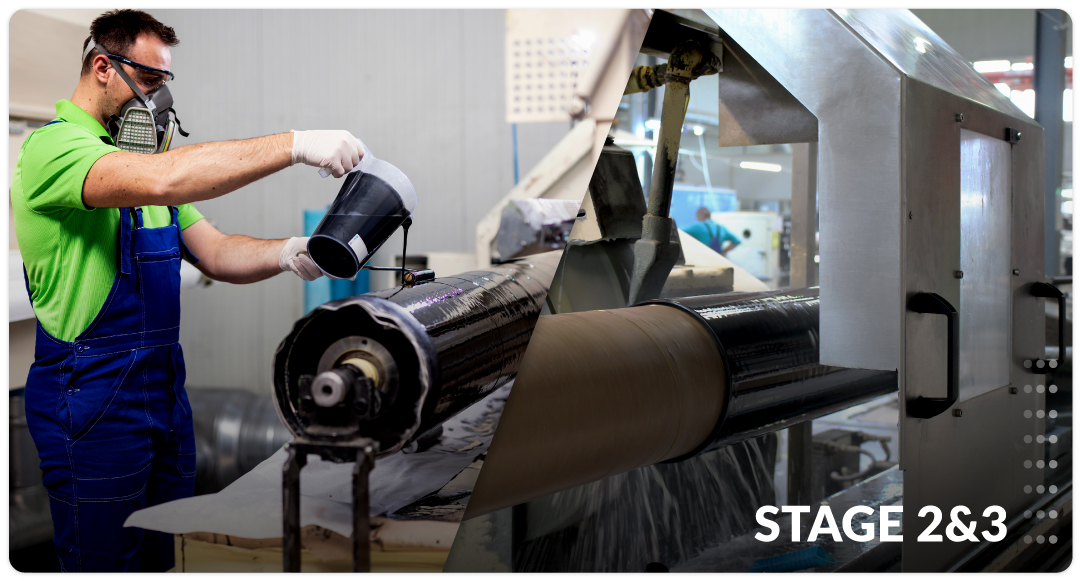

    The second and third stage of the sleeve construction involves building up each major layer elements of the sleeve. These are :

    – A foam layer

    – A core material layer

    – The outer layer

    – The optional compressible later depending on sleeve model.

    After each crucial layer is done and hardened, the tube is then ground finely to ensure asmooth surface and accurate spherical profile for the sleeve or bridge. This process has to be highly precise to ensure that the micro deformities and micro bumps are removed and won’t affect a job run.

    STAGE 4: Quality Control and Adjustments

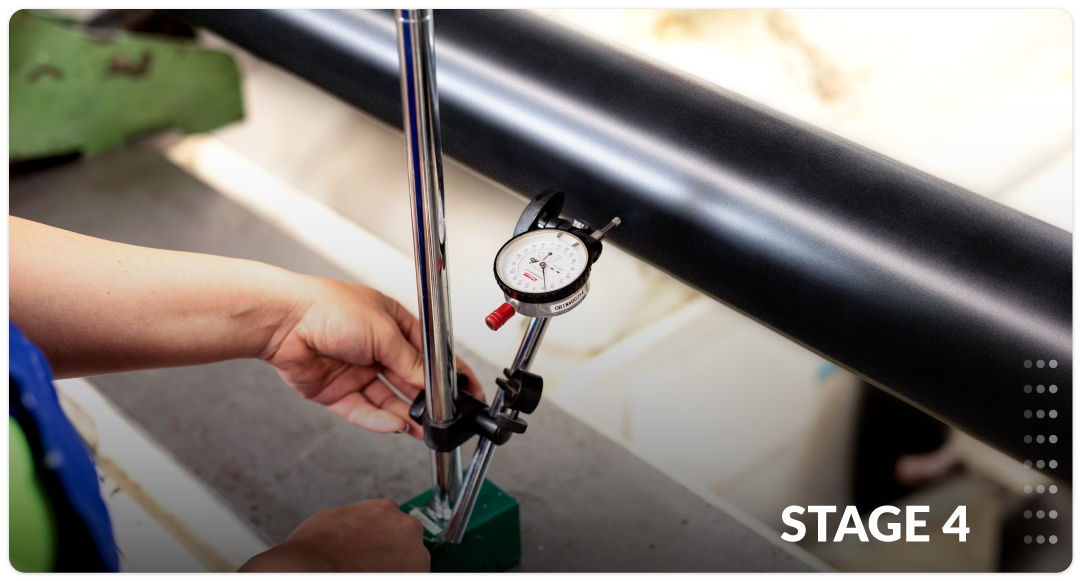

    The final stage is about quality control and to fix any other issues that can arise. This step we consider as one of if not the most important step. Wrongly produced sleeves cost our clients money and we ensure that the sleeves are accurately build and round. We care so much we even produce a product for this very step which is the TIR Sleeve Measurement System that checks the roundness of our sleeves.

    Once all steps have been complete, our sleeves are then packed and shipped to our happy customers around the world.
